Duro Dyne PBF-520 PINSPOTTER ITEM # 27377 - NO LONGER AVAIL

GENERAL DESCRIPTION

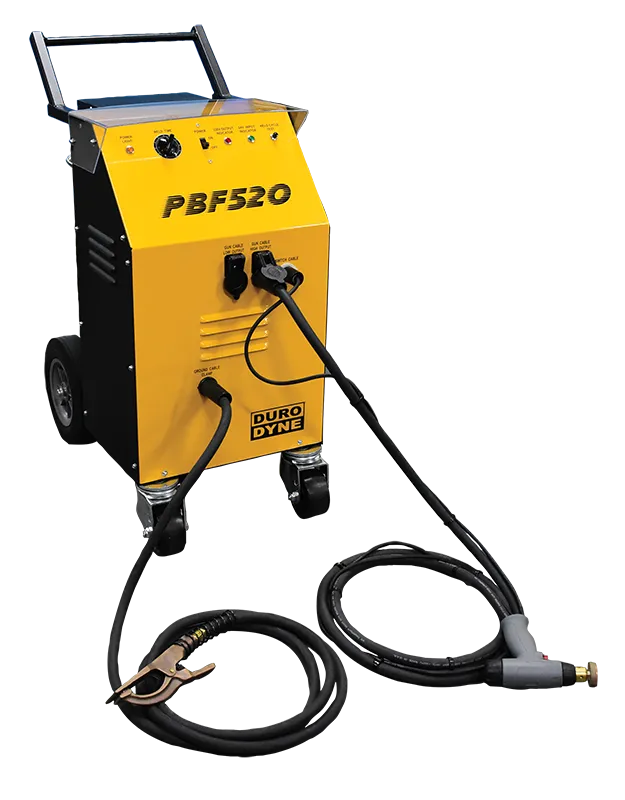

The PBF520 Portable Pinspotter features a multi-tap transformer allowing it to deliver precise, timed, low voltage to the welding tip for precision welds. This machine will weld pins from ½ inch to 4 inches long on steel from 26 to 16 gauge. A new, innovative, ergonomic, high impact gun allows more flexibility during operation. Proven solid-state weld control circuitry guarantees years of reliable, trouble-free service in your shop.

FEATURES

Features a multi-tap transformer allowing it to deliver precise, timed, low voltage to the welding tip for precision welds. The PBF-520 welds 1/2″ to 4″ Weld Pins to duct work up to 16 Gauge. The choice of Weld Pin machines for most Roof Curb Fab Shops.

Heavy-duty caster wheels allow easy movement in the shop Hi/Lo power selection via two weld cable power ports provides adjustment for different welding conditions Standard 16 foot gun cable and 11 foot ground cable. Gun Cable is extendable to 24 feet with optional extension set (Item # 27054) Ergonomic, high impact weld gun allows more flexibility “Easy Read” weld timer adjustment for precise control Panel mounted test switch and indicator lights for easy troubleshooting Proven Solid State Control Circuitry

TECHNICAL SPECIFICATIONS

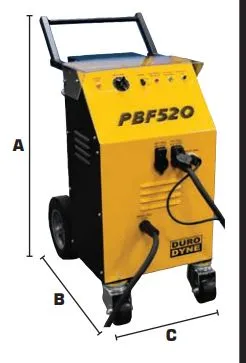

ELECTRICAL: Input voltage: 208-230 V 60 HZ single phase. 100 amp service DIMENSIONS: Height: 37 inches Width: 17 inches Depth: 26 inches
