CS Unitec MABasic 400 Description

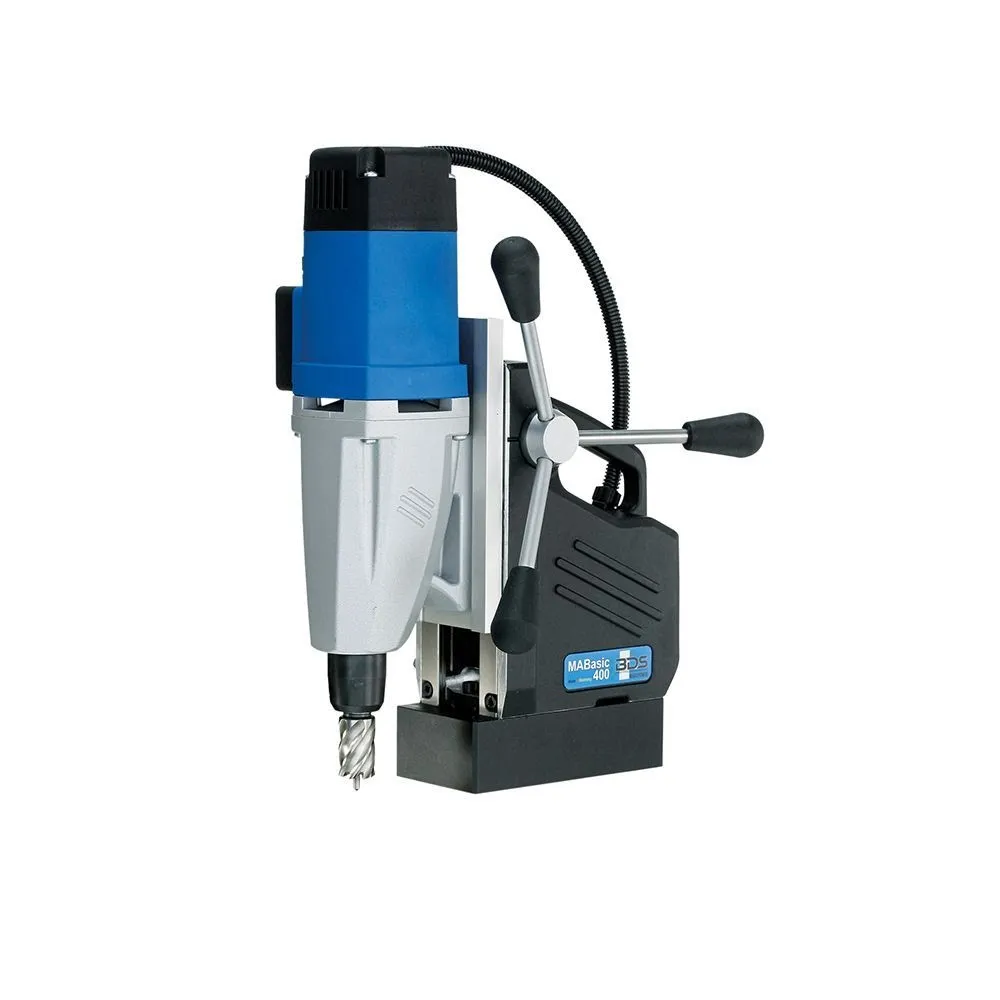

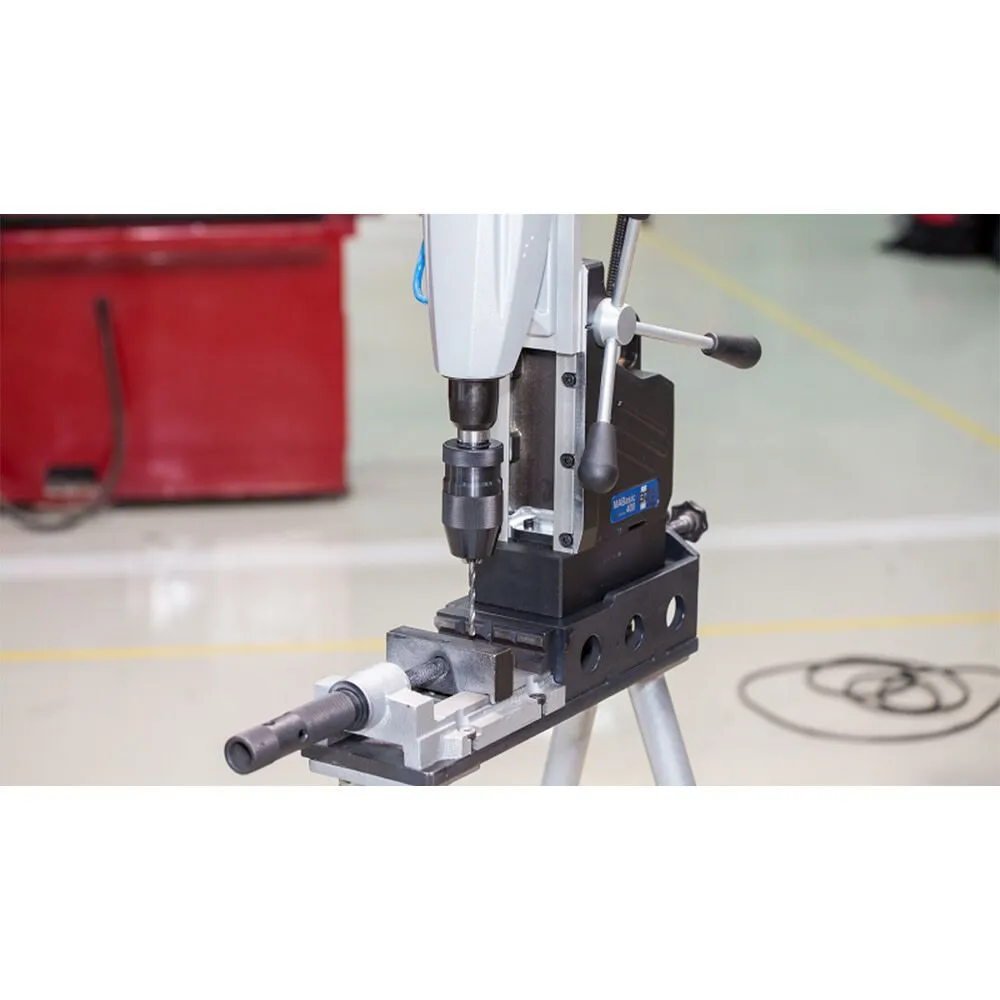

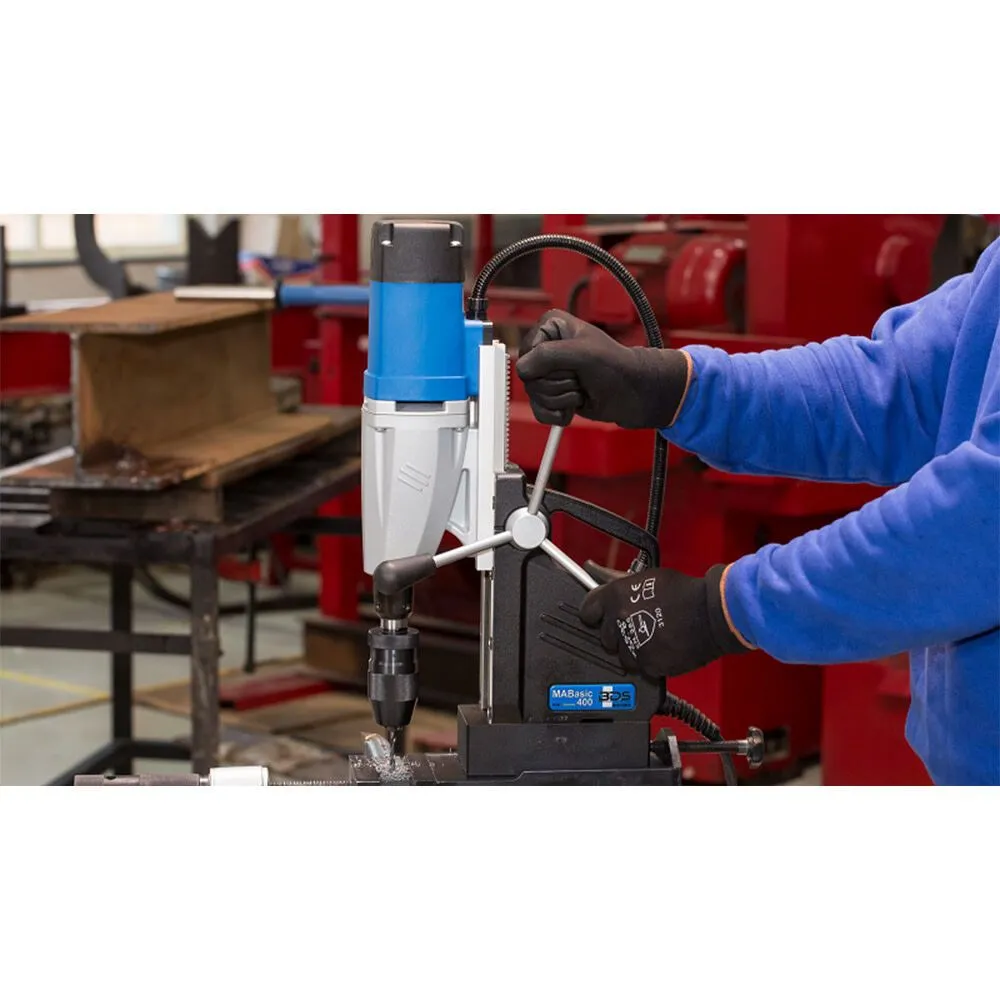

CS Unitec’s MABasic line of magnetic drills consists of powerful and reliable machines at an affordable price, a perfect blend of power, endurance and economy. The MABasic 400 magnetic drill is a heavy-duty, workhorse with: 9.5 Amp motor, 2-speed gearbox (430/760RPM), and a 6-1/3" stroke. The MABasic 400 drills up to 1-5/8” dia. with annular cutters in structural steel and other metals. The drill accepts cutters with a 3/4” Weldon Shank. With included drill chuck, this model easily converts to a standard drill press for conventional twist drilling up to 5/8” diameter. Compact (14" tall) and lightweight (27 lbs.), the MABasic 400 is easily portable to the jobsite, making it the hole-cutting solution for steel fabricators and contractors, as well as plant maintenance operations. The MABasic 400 is equipped with an internal automatic lubrication system that increases the life of annular cutters by reducing friction and wear. The Electronic Safety Shutoff Sensor automatically shuts down the drill if the magnet loses contact with the material, protecting both operator and equipment. The machine’s magnet has a holding strength of 3,080 lbs.
CS Unitec MABasic 400 Includes
- (1) MABasic 400

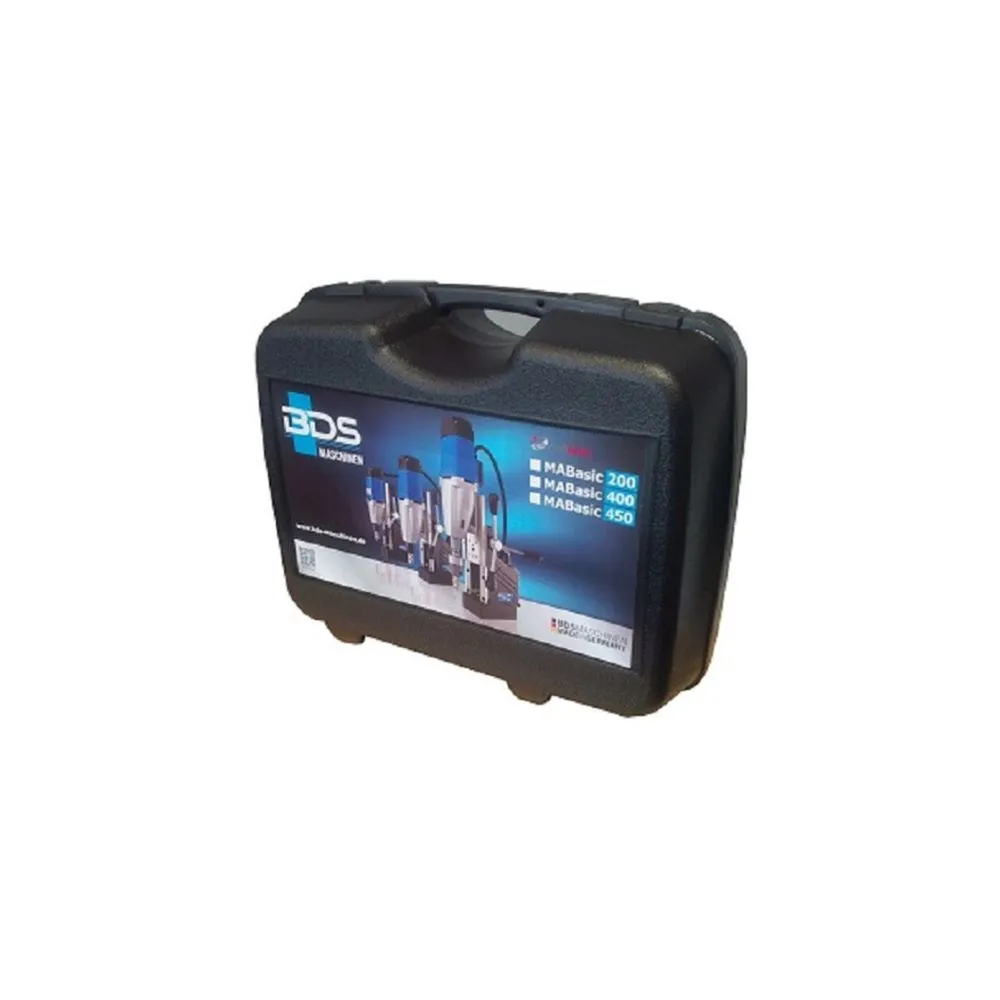

- (1) Carrying Case
- (1) Safety Strap
- (1) Operating manual
- (1) Warranty Certificate
- (1) Coolant bottle
- (2) Pilot/Ejector Pin
- (2) Hex Keys
- (1) 3/4" Weldon Tool Holder w/ internal Lubrication, Affixed
- (1) 1/2" Geared Chuck
CS Unitec MABasic 400 Features
- Heavy-duty, purpose-built, 2-speed workhorse
- 1-5/8" diameter hole cutting capacity
- Powerful and reliable machines at an affordable price
- Excellent Power To Weight Ratio, Only 27 lbs
- Compact, lightweight, portable design
- Internal lubrication system
- Simple, ergonomic arrangement of controls for one-handed operation
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
- 3/4" Weldon tool holder
- Made in Germany
CS Unitec MABasic 400 Specifications
Max Annular Cutter Diameter | 1-5/8" |
Max Twist Drill Diameter | 5/8" |
Speed | 430/760 RPM |
Motor | 9.5 Amp / 110 Volt |
Stroke | 6-1/3" |
Weight | 27 lbs |
Special Feature(s) | 2-Speed, Durability, Economy, Electronic Safety Shutoff |
Dimensions | 14" H x 9-1/2" L x 6-1/2" W |
Magnetic Base Dimensions | 14" L x 4-3/4" W |
Magnetic Force (1" Thick Plate) | 3080 lbs |
Automatic Lubrication | Oil Bottle Included |
